Matrice 210 RTK
Model М210-RTK
Takeoff weight Maximum 6140 g
Diagonal size (without propellers) 643 mm
Dimensions (unfolded) 887 x 880 x 408 mm
Dimensions (folded) 716 x 242 x 236 mm
Packaging dimensions 790 x 390 x 290 mm
Assembly view Assembly inward
Number of batteries 2 pcs.
Weight (TB50) About 4270 g
Weight (TB55) About 5000 g
Max. flight time (no load, with TB50) 23 min
Max. flight time (no load, with TB55) 32 min
Max. flight time (full load, with TB50) 13 min
Max. flight time (full load, with TB55) 24 min
Max. payload (2 TB50) Approx. 1870 g (with two standard batteries)
Max. payload (2 TB55) Approx. 1140 g (with two standard batteries)
IP class IP43
Folding Chassis Standard
Max. climb speed 5 m / s
Max. rate of descent 3 m / s
Max. speed S-mode 23 m / s, P-mode 17 m / s, A-mode 23 m / s
Max. Tilt angle P-mode: 35 ° (incl. front vision system: 25 °), A-mode: 35 °; S-mode: 35 °
Max. angular velocity 189
Maximum permissible wind speed 10 m / s
Max. flight altitude 2500 m (above sea level)
Working temperature 200
Hovering Accuracy Vertical: (+/- 0.5 m) or (+/- 0.1 m, incl. Lower vision system), horizontal: (+/- 1.5 m) or (+/- 0.3 m, incl. Lower vision system) ( P-mode with GPS)
DJI 3515 Motor Model
Propeller Model 1760S

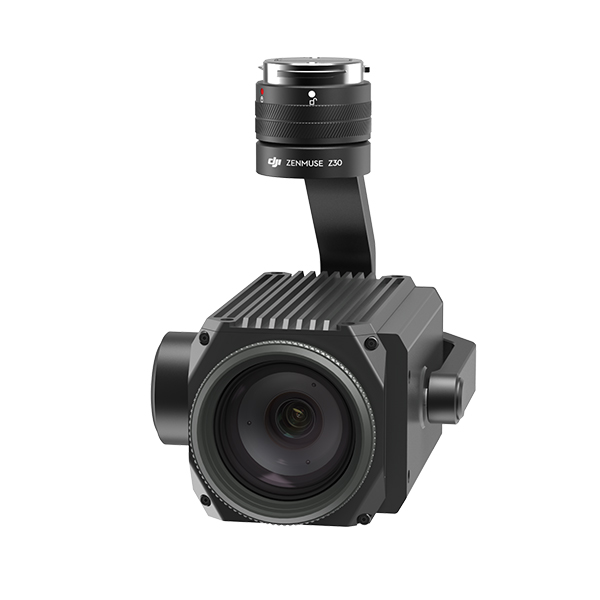

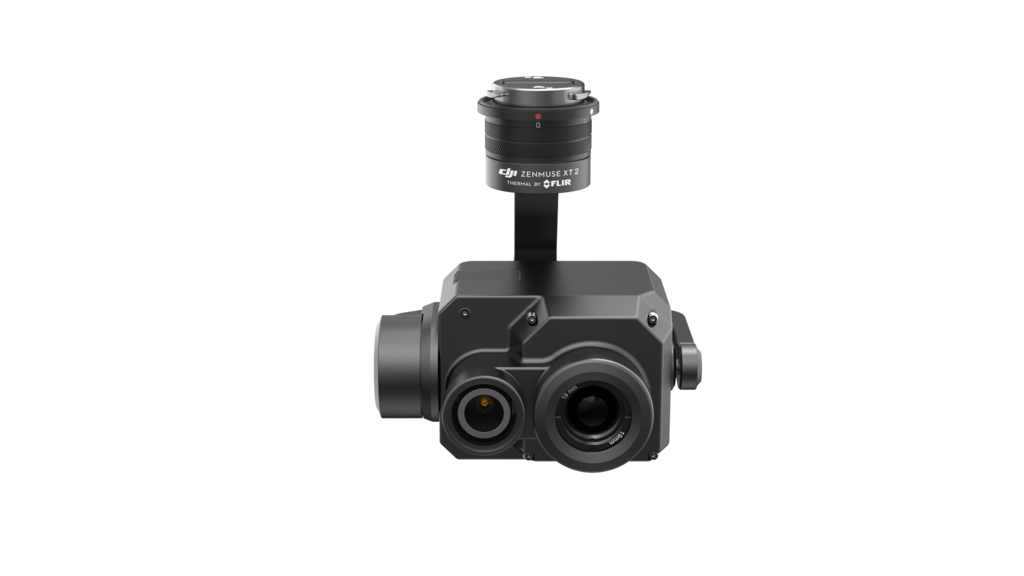

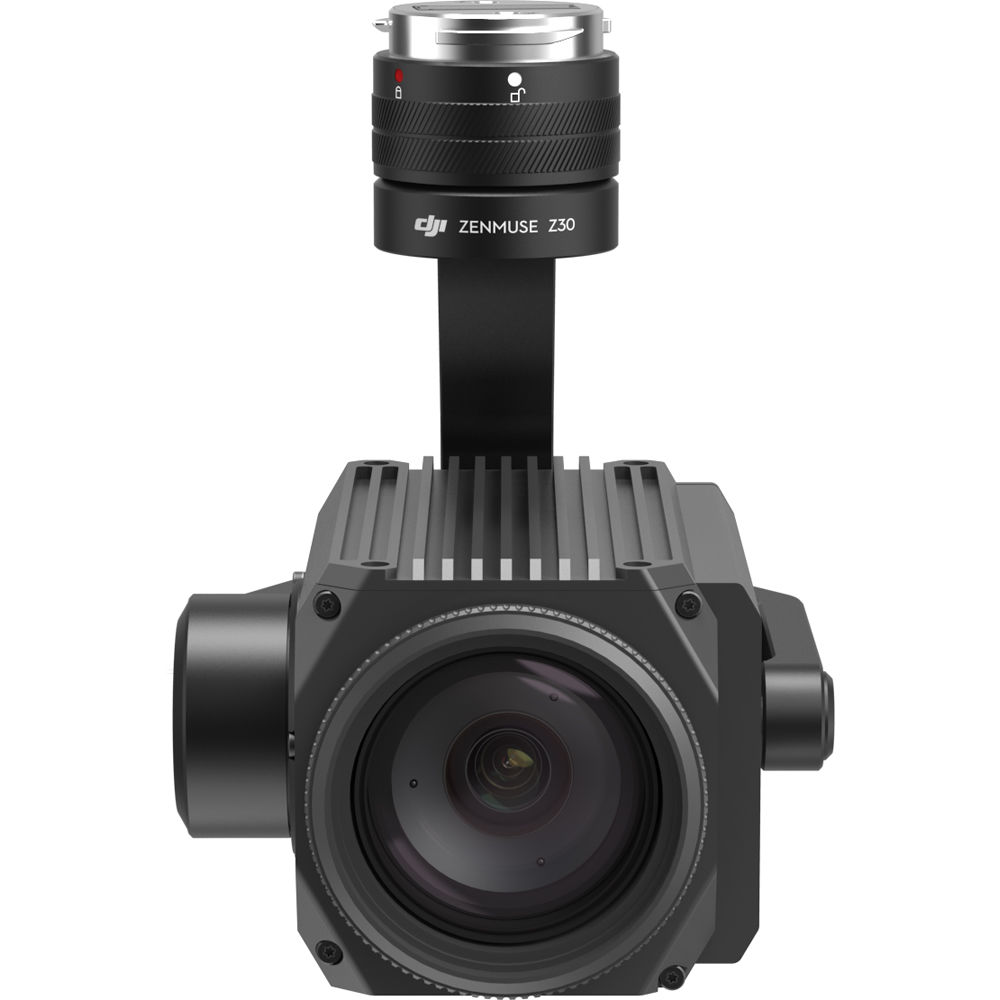

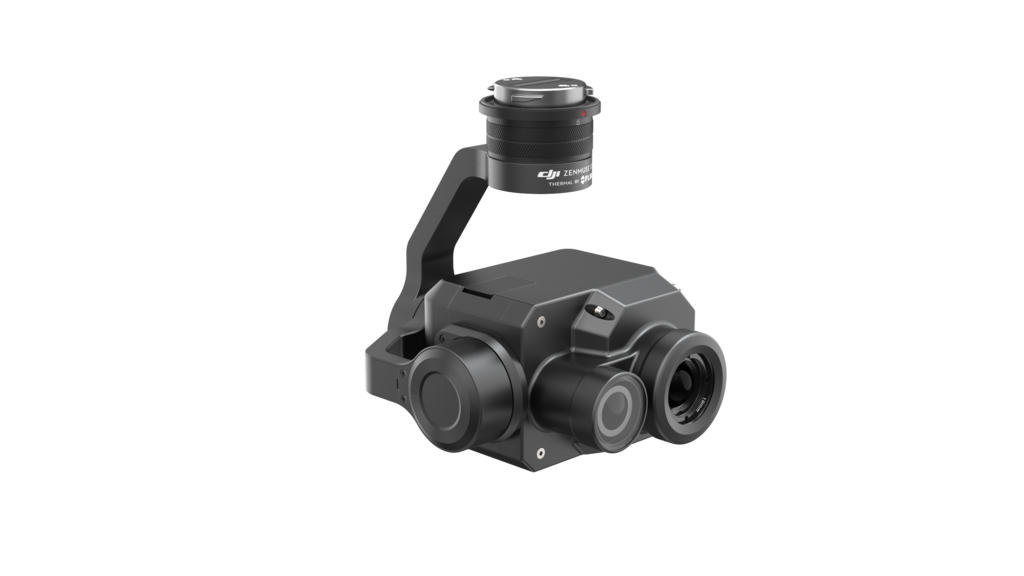

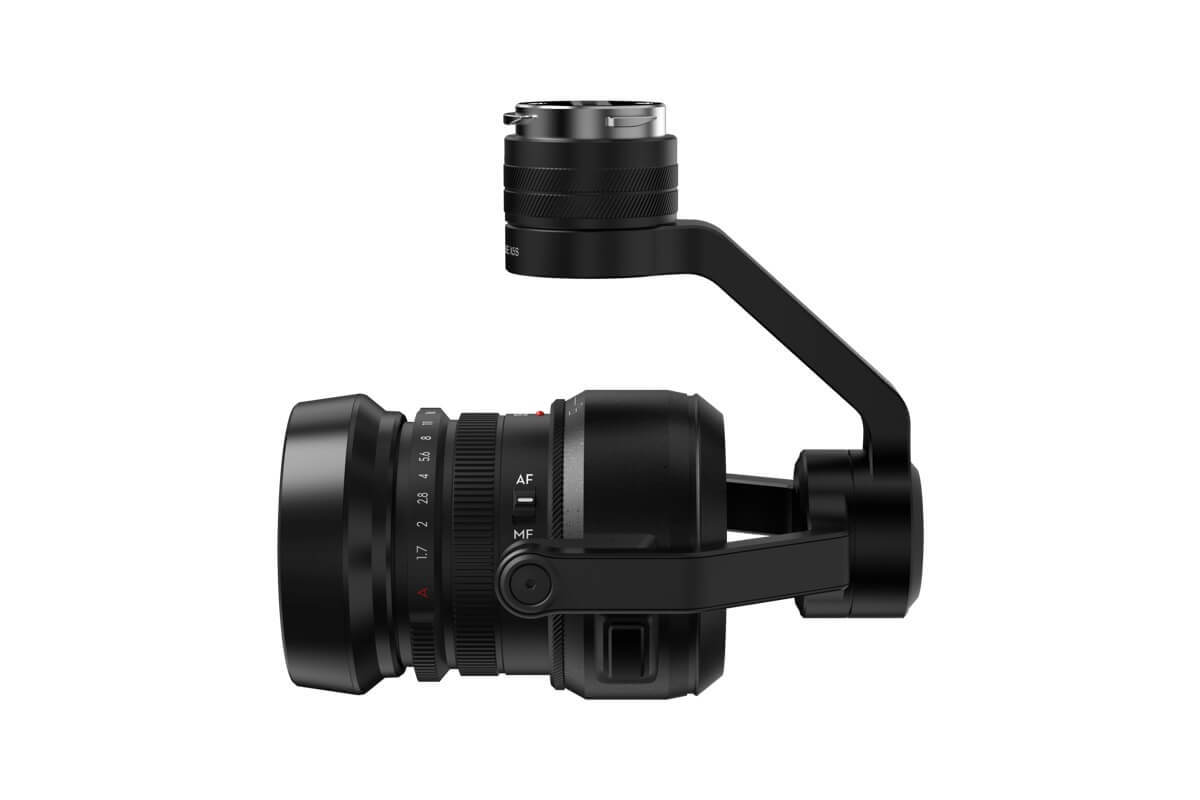

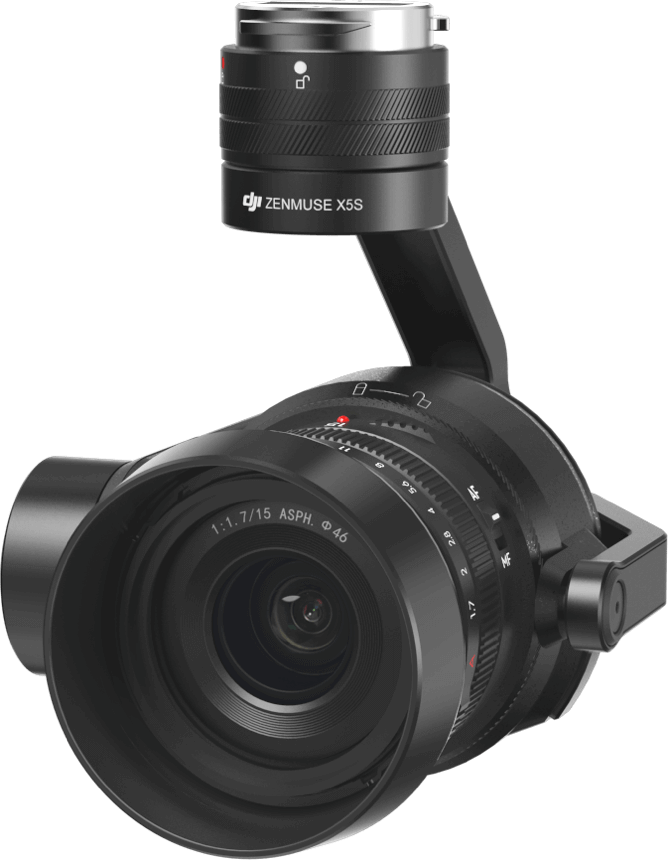

Zenmuse X4S, Zenmuse X5S, Zenmuse Z30, Zenmuse XT compatible
The upper suspension mount is supported
The lower double suspension mount is supported
The lower suspension mount is supported
Model GL6D10A
Operating frequency 2.400-2.483 GHz; 5.725-5.850 GHz
Signal transmission range 2.400 GHz-2.483 GHz (without obstacles and interference) FCC: 7000 m, CE: 3500 m, SRRC: 4000 m; 5.725 GHz — 5.850 GHz (without obstacles and interference) FCC: 7000 m, CE: 2000 m, SRRC: 5000 m
Operating temperature -20 ~ 40 °C
Battery LiPo 2S 6000 mAh
Transmitter Power (EIRP) 2.400 GHz-2.483 GHz FCC: 26 dBm, CE: 17 dBm, SRRC: 20 dBm, 5.725 GHz — 5.825 GHz FCC: 28 dBm, CE: 14 dBm, SRRC: 20 dBm
9W output power (Without power supply to smart devices)
USB power supply iOS: 1 A at 5.2 V (max.); Android: 1.5 A at 5.2 V (max.) USB video output
port, HDMI
The ability to connect two users The main and auxiliary connection
Temperature range for storage less than 3 months: -20 to 45 °C, more than 3 months: 22 to 28 °C
Charging temperature range 0 ~ 40 °C
Battery Charger DJI Charger
Power supply Built-in battery
Mount for a mobile device Tablet or phone
Compatible mobile device size max. width 170 mm
Capacity 4280 match
Model TB50
Voltage 22.8 V
Type of LiPo 6S
Weight About 520 g
Power consumption 97.58 W / h
Max. charging power 180 W
Operating temperature -20 ~ 45 °C
Storage temperature range Less than 3 months: -20 to 45 °C, more than 3 months: 22 to 28 °C
Model TB55
Capacity 7660 match
Voltage 22.8 V
Type of LiPo 6S
Power consumption 176.93 W / h
Weight About 885 g
Max. charging power 180 W
Operating temperature -20 ~ 45 °C
Charging temperature range 5 ~ 40 °C
Storage temperature range less than 3 months: -20 to 45 °C, more than 3 months: 22 to 28 °C
Model IN2C180
Voltage 26.1 V
Rated power 180 W
8. Applications / Live Broadcast
DJ GO 4 Mobile app
Required OS os 9.0 or later, Android 4.0 or later
Recommended Android devices Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1
Recommended iOS devices iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus
Speed range Up to 10 m / s (at a height of 2 m above the ground) Height
range 0-10 m
Operating range 0-10 m
Obstacle detection range 10-500 cm
Environment Non-absorbing material, hard surface (indoor carpet reduces productivity)
Working environment of the surface with a clear structure and good lighting (> 15 lux)
Obstacle detection range 0.7-30 m
Viewing angle 60° (horizontal), 54° (vertical)
Working environment of the surface with a clear structure and good lighting (> 15 lux)
Obstacle detection range 0-5 m
Viewing pattern +/- 5°
Working medium Large object with a reflective and scattering surface, scattering level > 10%
Payload

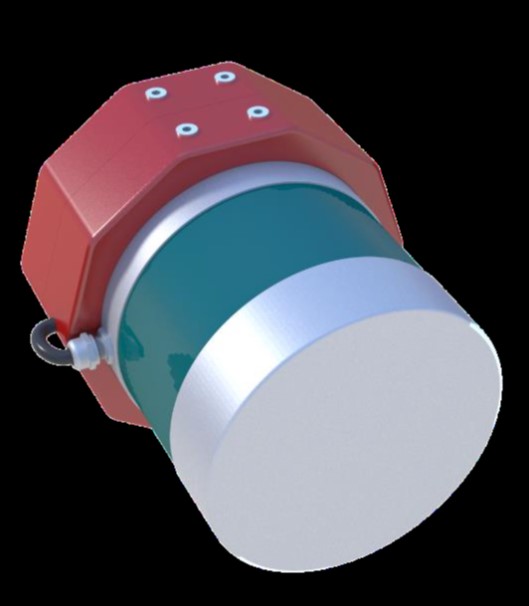

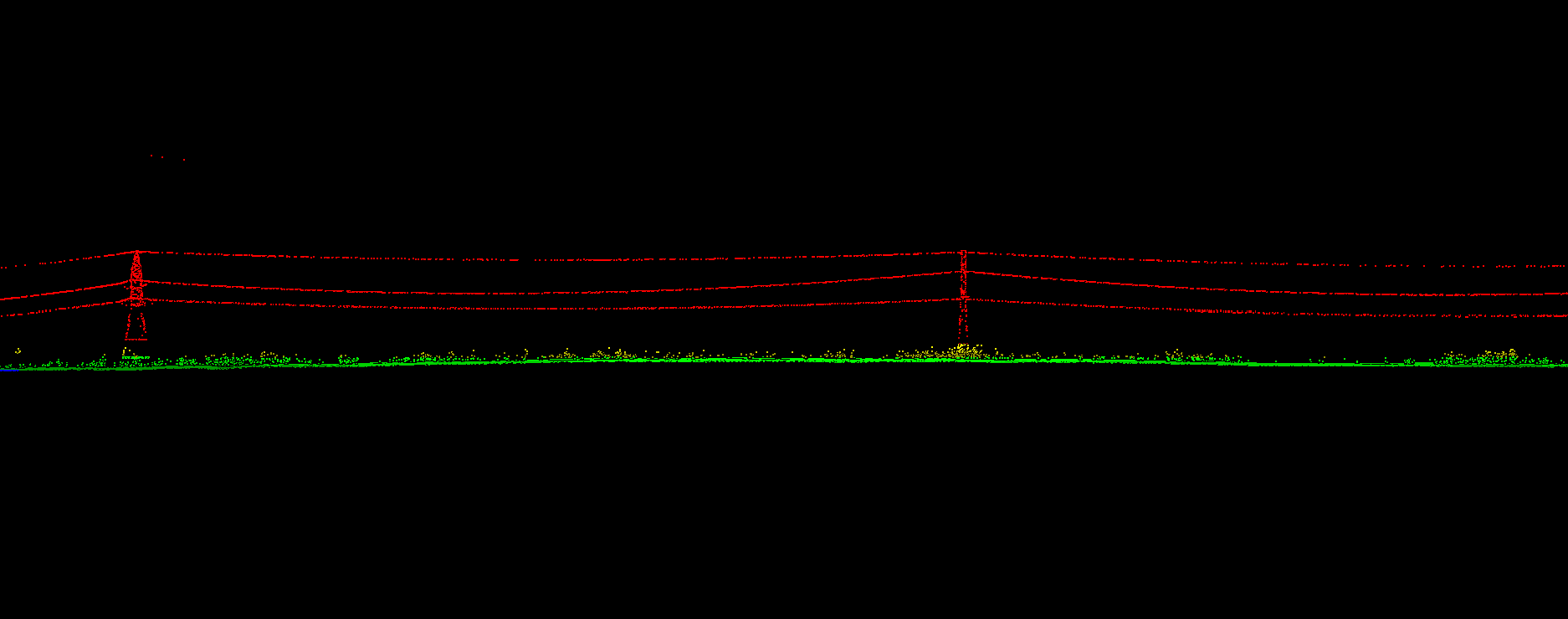

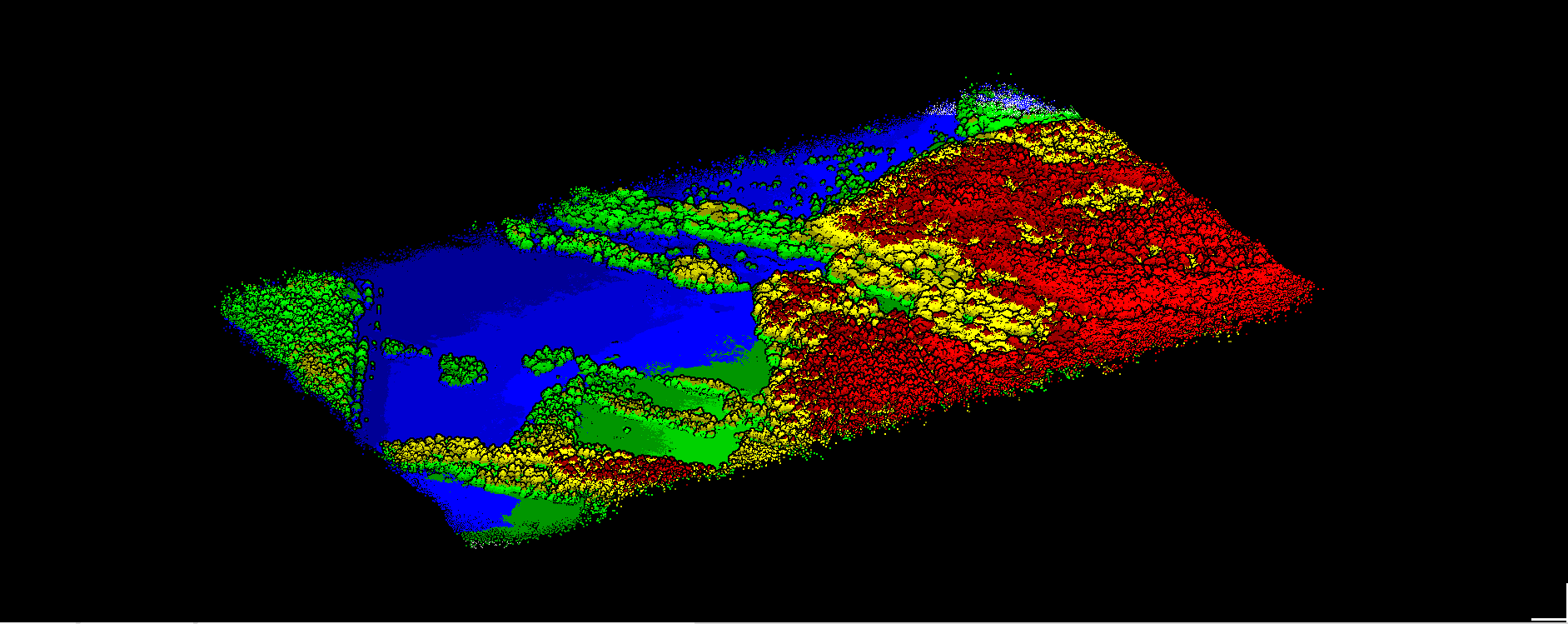

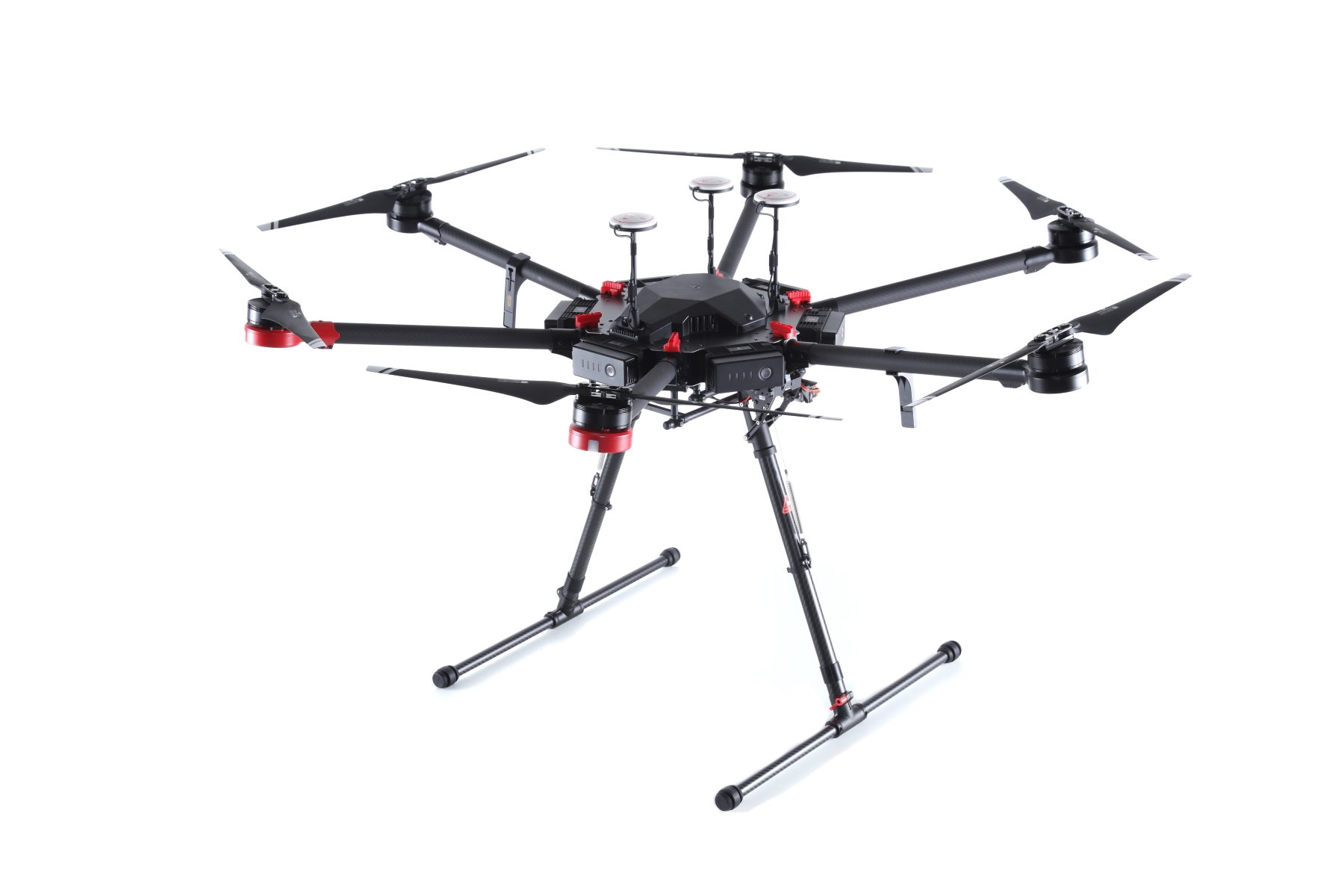

Matrice 600 Lidar
Diagonal size 1133 mm
Dimensions 1668 mm = 1518 m = 727 mm open propellers, beams and GPS mount, including chassis
437 mm = 402 m = 553 mm folded propellers, beams and GPS mount, excluding chassis
Package dimensions 525 mm × 480 mm × 640 mm
Weight (with 6 TB47S batteries) 9.5 kg
Weight (with 6 TB48 batteries) 10 kg
Takeoff weight Maximum 15.5 kg
Positioning accuracy (In positioning mode, with GPS running) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max. angular velocity Tilt: 300° / s, Turn: 150° / s
Max. tilt angle 25°
Max. permissible wind speed 8 m / s
Max. climb speed of 5 m / s
Max. the rate of descent is 3 m / s
Max. speed 65 km / h (without wind)
2170R propellers: 2500 m；
2195 propellers: 4500 m
Hovering Time* (with six TB47S batteries) No payload: 32 min, 6 kg payload: 16 min
Hovering Time* (with six TB48S batteries) No payload: 38 min, 5.5 kg payload: 18 min
The time was measured when flying at an altitude of 10 m above sea level in calm weather with a landing at 10% battery charge. A3 Pro Flight Controller.
Motor model: DJI 6010
Propeller model: DJI 2170R
Supported DJI Gimbals Ronin-MX; Zenmuse Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Retractable Landing Gear Standard
Operating Temperature 14° Fto 104° F (-10° C to 40° C)
RVoltage Output 26.1 V
Rated Power 600 W
Single Battery Port Output Power 100 W
Capacity 5700 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 129.96 Wh
Net Weight 680 g
Operating Temperature 14°F to 104° F (-10°C to 40° C)
Max Charging Power 180 W
Operating Frequency 920.6 MHz to 928 MHz (Japan); 5.725 GHz to 5.825 GHz; 2.400 GHz to 2.483 GHz
Max Transmission Distance FCC Compliant: 3.1 mi (5 km), CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference)
Transmitter Power (EIRP) 10 dBm @ 900M, 13 dBm @ 5.8G, 20 dBm @ 2.4G
Video Output Port HDMI, SDI, USB
Operating Temperature 14°F to 104° F (-10° to 40° C)
Battery 6000 mAh LiPo 2S
Standard Battery (Model: TB47S)
Capacity 4500 mAh
Voltage 22.2 V
Battery Type LiPo 6S
Energy 99.9 Wh
Net Weight 595 g
Operating Temperature 14° F to 104° F (-10°C to 40° C)
Max Charging Power 180 W
Payload
Mavic 2 enterprise
Dual Edition:899 g
Max Takeoff Weight 1100 g
Dimensions(L×W×H)
Folded： 214×91×84 mm
Unfolded: 322×242×84 mm
Unfolded+Spotlight：322×242×114 mm
Unfolded+Beacon：322×242×101 mm
Unfolded+Speaker：322×242×140 mm
Diagonal Length
354 mm
Max Ascent Speed
5 m/s (S-mode[1])
4 m/s (P-mode)
4 m/s (S-mode with accessories[1])
4 m/s (P-mode with accessories)
Max Descent Speed
3 m/s (S-mode[1])
3 m/s (P-mode)
Max Speed (near sea level, no wind)
72 kph (S-mode，without wind)
50 kph (P-mode，without wind)
Max Service Ceiling Above Sea Level
6000 m
Max Flight Time (no wind)
31 min (at a consistent speed of 25 kph)
Max Hovering Time (no wind)
29 min
27 min (with beacon turned on)
28 min (with beacon turned off)
22 min (with spotlight turned on)
26 min (with spotlight turned off)
25 min (with speaker turned on)
26 min (with speaker turned off)
Max Wind Speed Resistance
29–38 kph
Max Tilt Angle
35° (S-mode, with remote controller)
25° (P-mode)
Max Angular Velocity
200°/s（S-Mode）
100°/s（P-Mode）200°/s（S-Mode）
100°/s（P-Mode）
Operating Temperature Range
-10°C to 40°C
GPS+GLONASS
Hovering Accuracy Range
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal: ±0.3m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Operating Frequency
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP)
2.400 - 2.4835 GHz
FCC：≤26 dBm
CE：≤20 dBm
SRRC：≤20 dBm
MIC：≤20 dBm5.725-5.850 GHz
FCC：≤26 dBm
CE：≤14 dBm
SRRC：≤26 dBm
Объем внутренней памяти
24 Гбайт

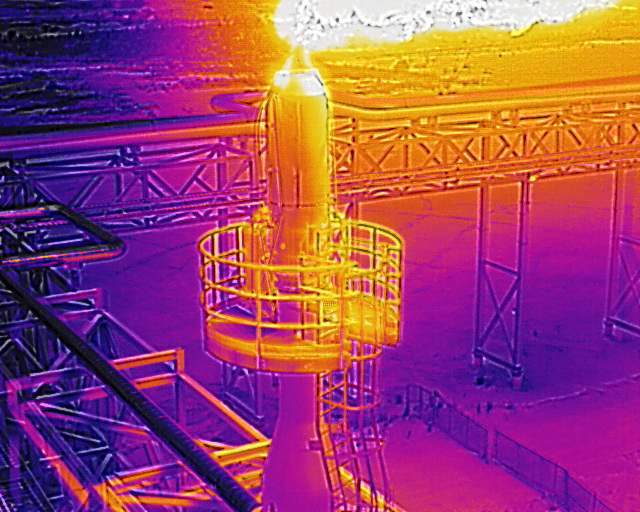

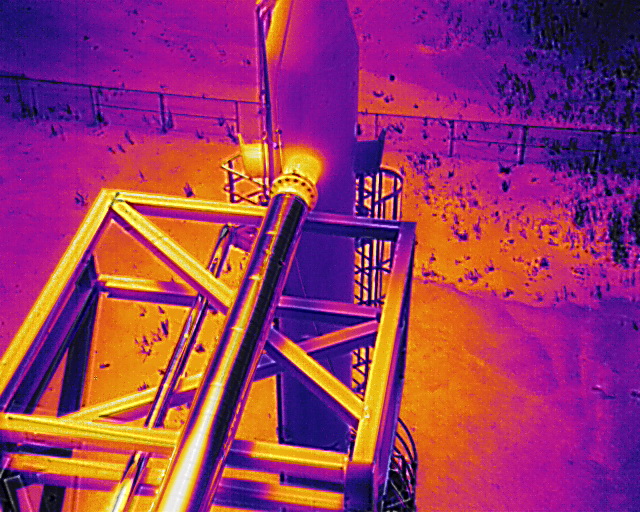

Термальная камера M2ED
Матрица
Микроболометр на оксиде ванадия (VOx)
Объектив
Горизонтальный угол обзора: 57°
Диафрагма: f/1.1
Разрешение матрицы
160×120
Шаг пикселя
12 мкм
Спектральный диапазон
8–14 мкм
Размер изображения
640×480 (4:3);
640×360 (16:9)
Режимы фотосъемки
Покадровая
Серийная съемка: 3/5/7 кадров
Режимы видеосъемки
640×360 при 8,7 кадров/с
Точность
В режиме высокой чувствительности: макс. ±5% (характерное значение)
В режиме низкой чувствительности: макс. ±10% (характерное значение)
Диапазон сцены
В режиме высокой чувствительности: -10°С…+140°C
В режиме низкой чувствительности: -10°С…+400°C
Фото
JPEG
Видео
MP4, MOV (MPEG-4 AVC/H.264)
Оптическая камера M2ED
Матрица
1/2.3” CMOS; Число эффективных пикселей: 12 млн
Объектив
Угол обзора: приблиз. 85°
24 мм (эквивалент формата 35 мм)
Диафрагма: f/2.8
Фокус: от 0,5 м до ∞
Диапазон ISO
Видео: 100–12800 (авто)
Фото: 100–1600 (авто)
Макс. разрешение изображения
4056×3040（4:3）；4056×2280（16:9）
Режимы фотосъемки
Единичный снимок
Серийная съемка: 3/5/7 кадров
Интервальная (2/3/5/7/10/15/20/30/60 с)
Режимы видеосъемки
4K Ultra HD：3840×2160 30p
2.7K：2688×1512 30p
FHD：1920×1080 30p
Макс. битрейт видео
100 Мбит/с
Фото
JPEG
Video MP4, MOV (MPEG-4 AVC/H.264)
Camera M2E
Sensor
1/2.3" CMOS; Effective pixels: 12M
Lens
FOV：82.6°(24 mm)；47.8°(48 mm)
Format equivalent：24-48 mm
Aperture：f/2.8(24 mm)-f/3.8(48 mm)
Auto focus at ：0.5 - ∞
ISO Range
Video：
100-3200
Photo：
100-1600(Auto)
100-12800(Manual)
Shutter Speed
8-1/8000s
Still Image Size
4000×3000
Still Photography Modes
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s)
Video Resolution
4K: 3840×2160 24/25/30p
2.7K: 2720×1530 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p
Max Video Bitrate
100 Mbps
Supported File System
FAT32(≤ 32 GB )；exFAT(> 32 GB)
Photo Format
JPEG，DNG (RAW)
Video Format
MP4 / MOV (MPEG-4 AVC/H.264)
Mechanical Range
Tilt: -135 – +45°
Pan: -100 – +100°
Controllable Range
Tilt: -90 – +30°
Pan: -75 – +75°
Stabilization
3-axis (tilt, roll, pan)
Max Control Speed (tilt)
120°/s
Angular Vibration Range
±0.005°
Omnidirectional Obstacle Sensing [3]
Forward
Precision Measurement Range:0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°
Backward
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°
Upward
Precision Measurement Range: 0.1 - 8 m
Downward
Precision Measurement Range: 0.5 - 11 m
Detectable Range: 11 - 22 m
Sides
Precision Measurement Range:0.5 - 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°
Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

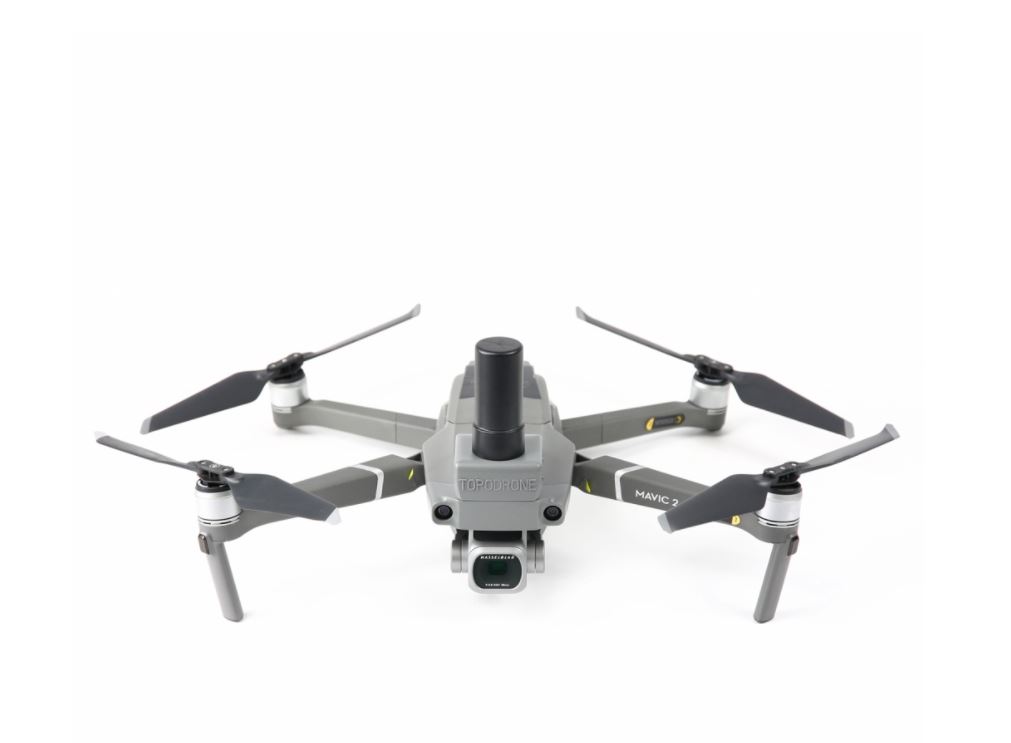

Mavic 2 Pro PPK
Takeoff Weight 907 g
Dimensions(L×W×H)
Folded： 214×91×84 mm
Unfolded: 322×242×84 mm
Diagonal Length
354 mm
Max Ascent Speed
5 m/s (S-mode[1])
4 m/s (P-mode)
Max Descent Speed
3 m/s (S-mode[1])
3 m/s (P-mode)
Max Speed (near sea level, no wind)
72 kph (S-mode)
Max Service Ceiling Above Sea Level
6000 m
Max Flight Time (no wind)
31 min (at a consistent speed of 25 kph)
Max Hovering Time (no wind)
29 min
Max. Flight Tistance (no wind)
18 km (at a speed of 50 km / h)
Max Wind Speed Resistance
29–38 kph
Max Tilt Angle
35° (S-mode, with remote controller)
25° (P-mode)
Max Angular Velocity
200°/s (S-Mode)
Operating Temperature Range
-10°C to 40°C
GPS+GLONASS
Hovering Accuracy Range
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Transmission Power (EIRP) 2.400 - 2.483 GHz
FCC：≤26 dBm
CE：≤20 dBm
SRRC：≤20 dBm
MIC：≤20 dBm
Matrix 1 "CMOS Effective Pixels: 20 million Lens
FOV: about 77 ° 28mm (35mm format equivalent)
Aperture: f / 2.8 – f / 11
Focus: 1 m to ∞
ISO Range
Video: 100-6400
Photo: 100-3200 (auto) 100-12800 (manual)
Shutter speed Electronic shutter speed: 8-1 / 8000 sec.
Max. image size 5472 × 3648
Still Image Modes
Single
Shot Burst shooting: 3/5 frames
Auto Exposure Compensation (AEB): 0.7 EV in 3/5-stop increments
Interval (JPEG: 2/3/5/7/10/15/20/30/60 s,
Burst RAW: 5/7/10/15/20/30/60 s)
Video resolution
4K: 3840 × 2160 24/25 / 30p
2.7K: 2688x1512 24/25/30/48/50 / 60p
FHD: 1920 × 1080 24/25/30/48/50/60 / 120p
Max. video bitrate
100 Mbps
Color profile
Dlog-M (10-bit), HDR video support (HLG 10-bit)
Supported file systems
FAT32 （≤ 32GB）
exFAT （> 32GB）
Photo formats
JPEG / DNG (RAW)
Video formats
MP4 / MOV (MPEG-4 AVC / H.264, HEVC / H.265)
-15 ° С ... 40 ° С
Weight 57 g
GNSS receiver type L1 / L2 multisystem
Number of channels 184
Supported satellites GPS, GLONASS, BeiDou, Galileo, SBAS
Operating frequency 10 Hz
XYZ data accuracy 3-5 cm
Tilt: -135 – +45°
Pan: -100 – +100°
Controllable Range
Tilt: -90 – +30°
Pan: -75 – +75°
Stabilization
3-axis (tilt, roll, pan)
Max Control Speed (tilt)
120°/s
Angular Vibration Range
±0.005°
Omnidirectional Obstacle Sensing [3]
Forward
Precision Measurement Range:0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°
Backward
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°
Upward
Precision Measurement Range: 0.1 - 8 m
Downward
Precision Measurement Range: 0.5 - 11 m
Detectable Range: 11 - 22 m
Sides
Precision Measurement Range:0.5 - 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°
Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
