Multibeam echo sounders (MBES)

A multibeam echosounder is a device typically used by hydrographic surveyors to determine the depth of water and the nature of the seabed. Most modern systems work by transmitting a broad acoustic fan shaped pulse from a specially designed transducer across the full swath acrosstrack with a narrow alongtrack then forming multiple receive beams (beamforming) that are much narrower in the acrosstrack (around 1 degree depending on the system). From this narrow beam a two way travel time of the acoustic pulse is then established utilizing a bottom detection algorithm.

Romona Inc. is the first Russian buyer Reson 8101 in Russia.

Frequency 240 kHz
Max Range 300 m
Resolution 1.25 sm
Number of beams 101
Along-Track Beamwidth 1.5°х  1.5°
Swath Coverage 150°
RESON-SeaBat-8101

(MBES) RESON SeaBat 7125

Frequency 200/400 kHz
Max Range 400 m
Resolution 3 mm
Number of beams 256/512
Along-Track Beamwidth 0.5° х 1°
Swath Coverage 128°
RESON-SeaBat-7125

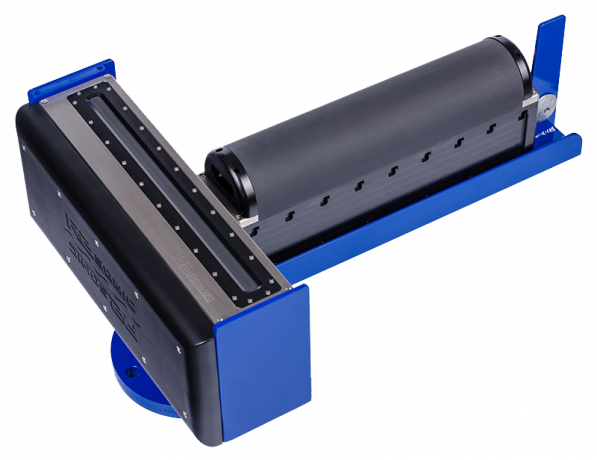

(MBES) R2Sonic 2026

Frequency 170 – 450 kHz
Max Range 800 m
Resolution 1.25 cm
Number of beams 256
Along-Track Beamwidth 0.5° х 0.5°

450 кГЦ° х 1°

200 кГЦ

Swath Coverage 10° — 160°

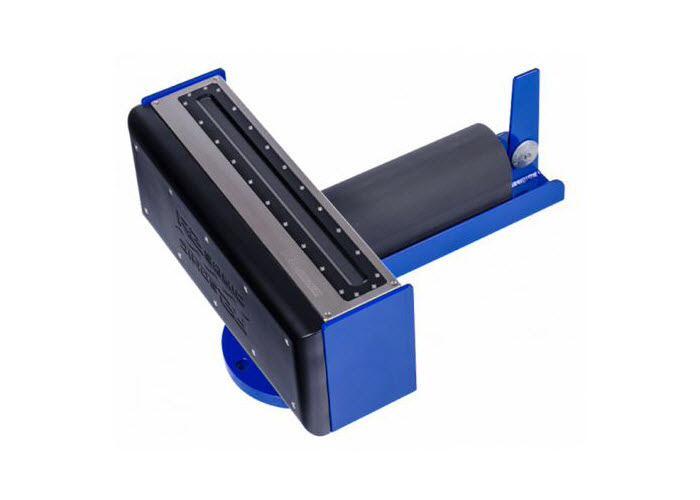

(MBES) R2Sonic 2024

Frequency 200 – 400 kHz
Max Range ~400 m
Resolution
Number of beams 256
Along-Track Beamwidth 0.5° х 1° 400kHz1° х 2°    200kHz
Swath Coverage 10° – 160°
R2Sonic-2024

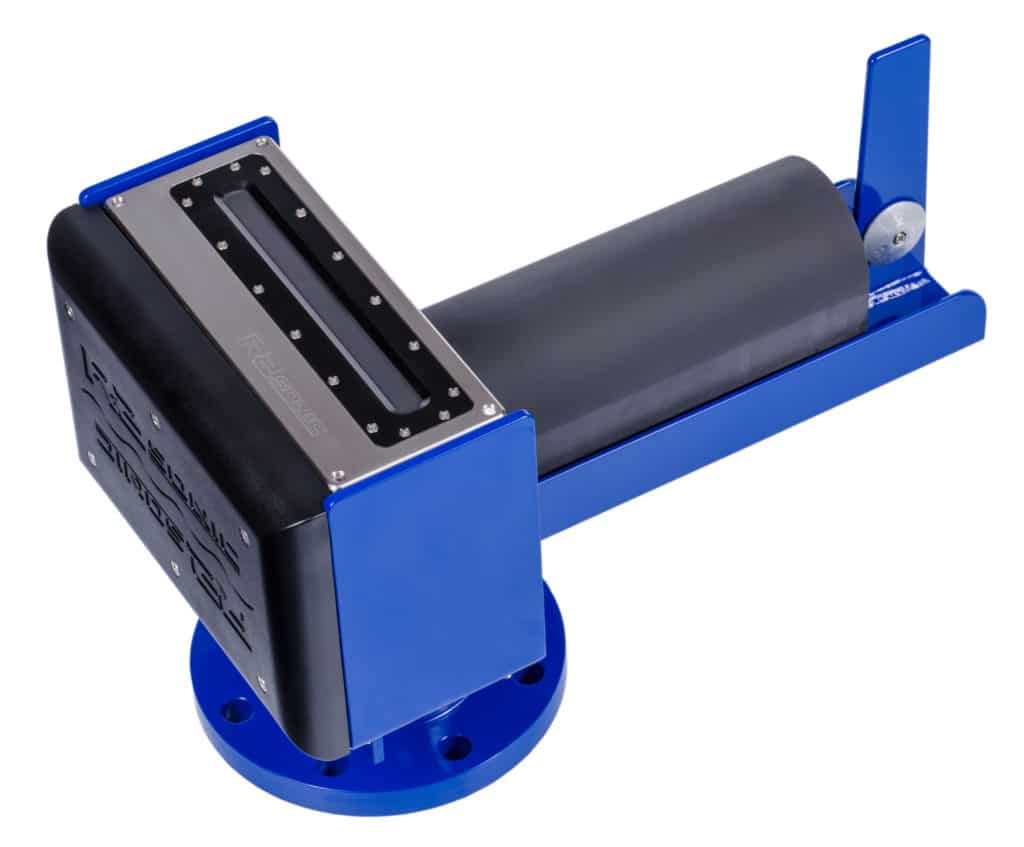

(MBES) R2Sonic 2022

Frequency 200 – 400 kHz
Max Range ~400 m
Разрешение
Resolution 256
Number of beams 1° х 1° 400kHz2° х 2°    200kHz
Along-Track Beamwidth 10° – 160°
R2Sonic-2022

(MBES) R2Sonic 2020

Frequency 200 – 400 kHz
Max Range ~75 m
Resolution
Number of beams 256
Along-Track Beamwidth 2° х 2° 400kHz   4° х 4°    200kHz
Swath Coverage 10° – 130°
R2Sonic-2020

Single beam echo sounders (SBES)

Single beam echo sounders are used to perform hydrographic surveys in areas that do not require 100 percent coverage. Currently SBES are mostly used for cross checks with data acquired by MBES.

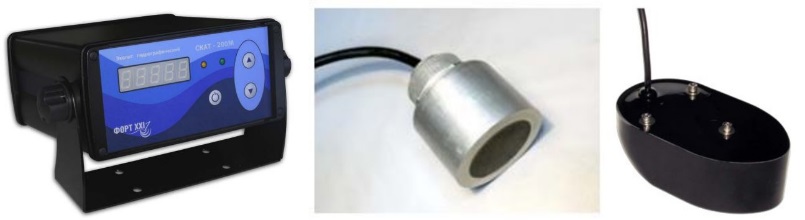

(SBES) ODOM ECHOTRACK DF3200 MK III

Multi-frequency high 100 – 1000 kHz
Multi-frequency low 3.5 – 50 kHz
Resolution 0,01 m
Measurement range 1.0 – 4000 m (12kHz)
Accuracy 200 kHz 0,01 m + 0,1%D33 kHz0,1 m + 0,1%D
ODOM-ECHOTRACK-MK-III-DF3200

(SBES)  ODOM CV100

Multi-frequency high 100 – 340 kHz
Multi-frequency low 24 – 50 kHz
Resolution 0,01 m
Measurement range 0,3 – 600 m
Accuracy 200 kHz          0,01 m + 0,1%D33  kHz   0,1 м + 0,1%D
ODOM-CV100

(SBES) ODOM HYDROTRACK

Multi-frequency high 100 – 750 kHz
Multi-frequency low 12 – 50 kHz
Resolution 0,01 m
Measurement range 0,2 – 600 m
Accuracy 200 kHz 0,01 m + 0,1%D33 kHz 0,1 m + 0,1%D
ODOM-HYDROTRACK-HT100

SWATH BATHYMETRY & SIDE SCAN SONAR 6205

6205

 FEATURES & BENEFITS

  • Next generation MPES technology
  • Unrivaled swath coverage in shallow water
    when compared to other single head systems
  • Co-registered dual frequency side scan
    and bathymetry
  • Superior multipath rejection
  • IHO SP-44 Special Order compliant
  • Swath sectors of up to 200°
  • Equidistant and Equiangle output options
  • Comes with EdgeTech’s Discover
  • Bathymetric Sonar Control Software

APPLICATIONS

  • Shallow Water Hydrographic Surveys
  • Benthic Habitat Mapping
  • Nautical Charting
  • Military Rapid Environmental Assessments (REA)
  • Route Surveys
  • Dredging Operations
  • Marine Debris Search
  • Port & Harbor Security
